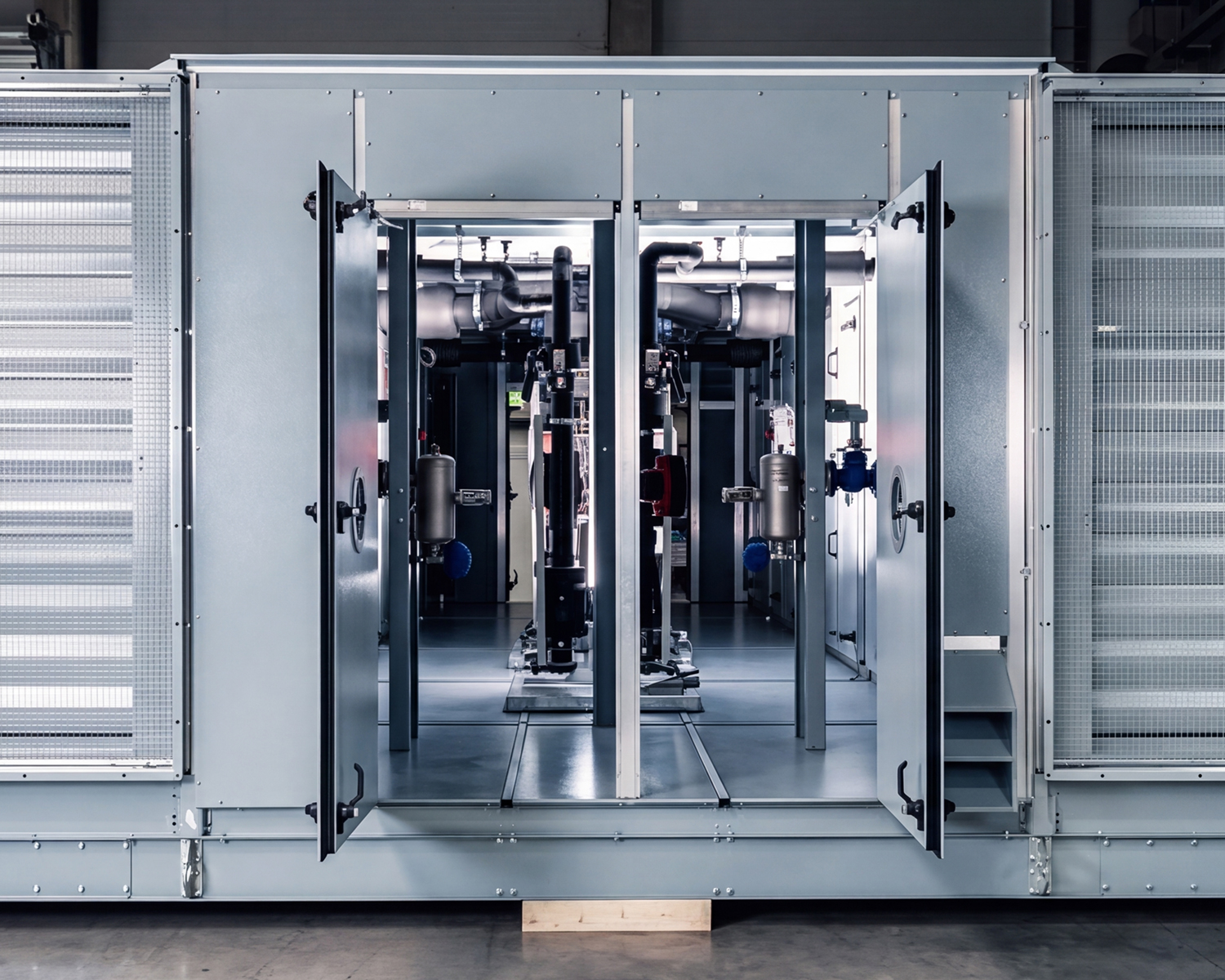

Thanks to its modular system, the AT4 series is an all-rounder and serves as the basis for ventilation and air handling systems for numerous applications. It is certified according to several standards, tested according to the specifications of Eurovent and optionally in execution according to ATEX guidelines for potentially explosive environments. The AT4 series is used in the medical, chemical and industrial sectors, as well as for any type of indoor spaces where people meet.
The AT4 modular system forms the basis for air handling units used in hospitals and medical facilities, as central ventilation systems in office buildings, as central ventilation and central air handling in shopping centers and exhibition halls as well as conference centers. It also comes in a nautical version, suitable for swimming pools, spas and wellness facilities. The AT4 can also be used for clean room applications in the pharmaceutical and industrial sectors. A weatherproof design makes installation on the roof (roof-top) possible. The modular design allows a wide performance range with air volumes from 1,000 to 200,000 m3/h.
We offer our own products as well as components and functional units from various manufacturers. All components and functional units are tested by AL-KO Air Technology.
|Unit size||Volume flow in m³/h||Width in mm||Height in mm*|
|12 x 6||2,300 – 5,300||995||536 (646)|
|8 x 8||2,000 – 4,700||689||689 (809)|
|12 x 8||3,000 – 7,100||995||689 (809)|
|16 x 8||4,000 – 9,400||1,301||689 (809)|
|12 x 12||4,600 – 10,600||995||995 (1,105)|
|16 x 12||6,100 – 14,200||1,301||995 (1,105)|
|20 x 12||7,600 – 17,700||1,607||995 (1,105)|
|16 x 16||8,100 – 18,900||1,301||1,301 (1,411)|
|20 x 16||10,100 – 23,600||1,607||1,301 (1,411)|
|20 x 20||12,600 – 29,500||1,607||1,607 (1,717)|
* Value in brackets indicates height incl. installation frame
AL-KO Air Technology offers monitored quality. All products are certified according to recognized standards. The certificates of the AT4 series can be found here:
When it comes to server rooms in large data centers, AL-KO Air Technology has designed individual solutions for ventilation and air handling systems for various customers all over the world.
