AL‑KO Air Heating and Air Cooling Units – Controls

The control systems for AL‑KO air heating and air cooling units offer intuitive operation, a robust construction, and a design focused on essential functionality. They support reliable, energy‑efficient performance across a wide range of applications. Trained professionals can install the control systems quickly and with minimal effort.

Receive consultation in person
To the contact form

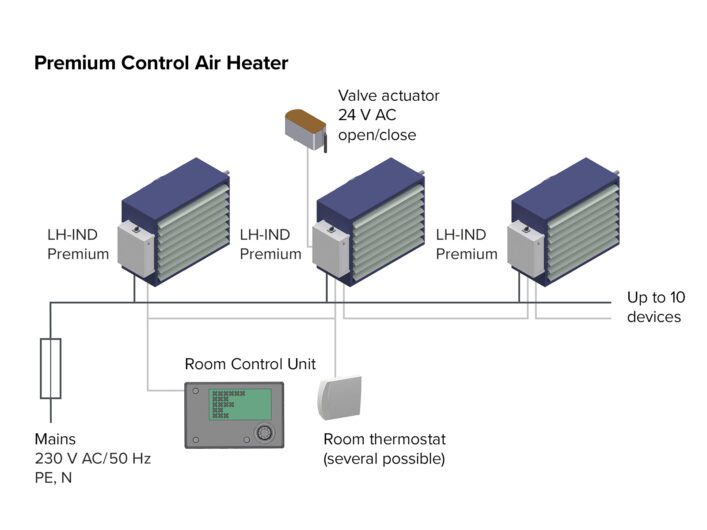

AL‑KO Air Heating and Air Cooling Units – Premium Control System

Room Air Control PREMIUM

The PREMIUM control system ensures fully automatic and precise regulation of space heating or cooling. It operates reliably with a 230‑V / 50‑Hz drive and provides a high level of operational safety through password‑protected access.



The system automatically adjusts fan speed based on current room temperature and can generate averaged readings using additional PREMIUM sensors – ideal for larger rooms or mixed‑use areas. Up to eight AL‑KO INDUSTRIE EC units can be controlled simultaneously, enabling efficient and flexible HVAC system planning.



With selectable operating modes Off, Auto, Day, Night, and Manual, plus flexible zone configuration, users can tailor the system precisely to their requirements. The PREMIUM control system also supports the operation of PWW/PKW OPEN/CLOSE 24‑V valves. Every PREMIUM connection box is additionally equipped with an optical fault indicator that provides early visibility of any operational irregularities.

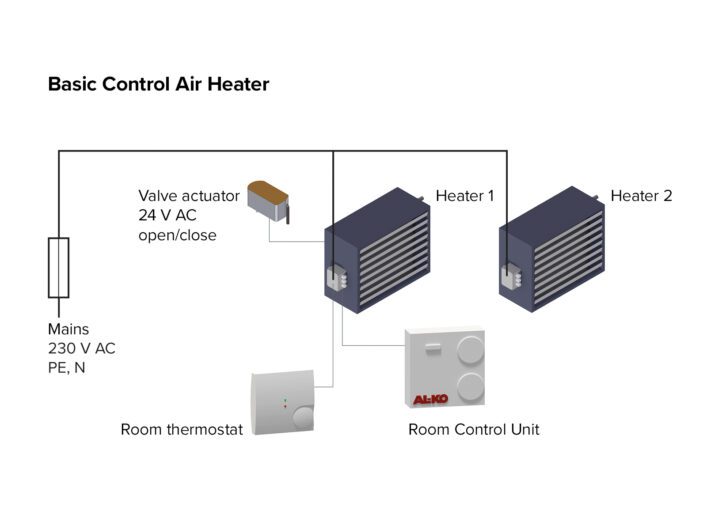

AL‑KO Air Heating and Air Cooling Units – Basic Control System

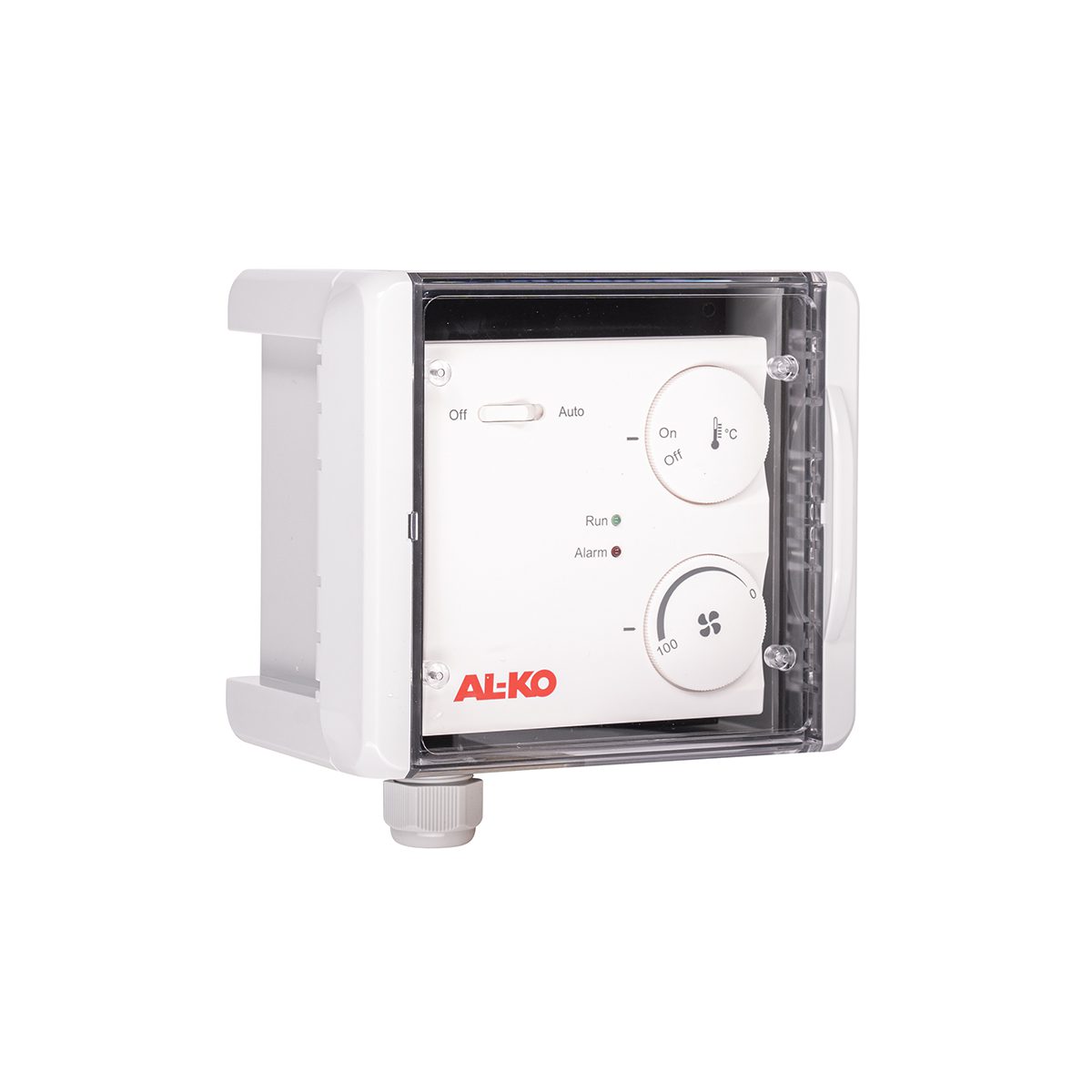

Room Air Control BASIC

The BASIC control system provides reliable regulation for space heating or cooling and operates with a 230‑V / 50‑Hz drive. Fan speed can be adjusted manually and as needed, ensuring the unit’s performance is always optimized for the room’s requirements.



Every AL‑KO INDUSTRIE EC unit comes equipped with a BASIC connection box featuring an integrated service switch. Up to two AL‑KO INDUSTRIE EC units can be operated simultaneously. The user interface is designed for clarity and ease of use: an On/Off‑Auto switch, an Open/Close dial for on‑site PWW/PKW valves, and clearly visible status indicators in green (operation) and red (fault/alarm) support intuitive operation.



For cooling applications, the BASIC control is suitable only in combination with air coolers that do not require a condensate pump. If a condensate pump is needed, the PREMIUM control option should be used to ensure safe and efficient system performance.
