AL-KO DATA AIR FAN WALL – Fan Wall Unit

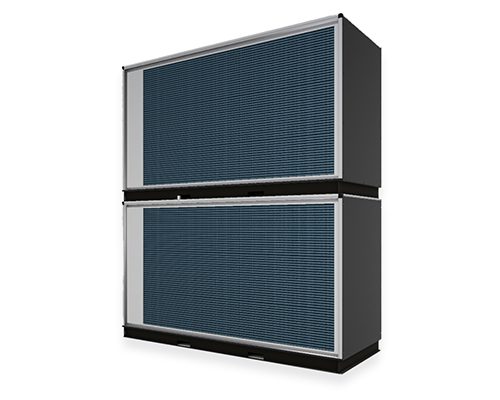

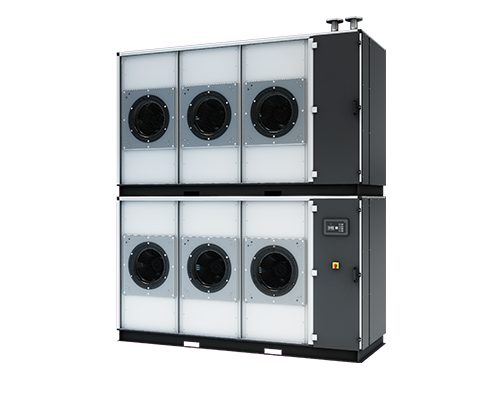

The AL-KO DATA AIR FAN WALL ensures reliable climate control for higher racks with larger heat loads in data centres. Even in larger server rooms, the modular system guarantees a high air throw distance for uniform cooling. The Fan Wall Unit offers maximum energy efficiency with high performance. Durable drives of the latest generation, optimized airflow management, and low operating noise levels are additional outstanding features.
Receive consultation in person
Description

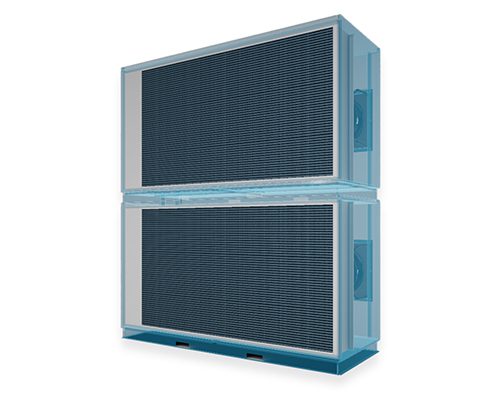

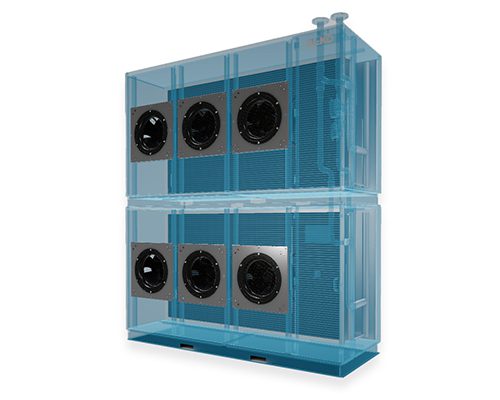

The AL-KO DATA AIR FAN WALL comprises the main functions of a damper, heat exchanger, filter, and EC fan. Fan Wall Units by AL-KO have a minimal footprint with maximum cooling capacity, designed for use in large and hyperscale data centres. The system is available with cooling capacities ranging from 120 to 600 kW. No raised floor is required in the data center, only a hot aisle.
Thanks to its modular design, the AL-KO DATA AIR FAN WALL optimally adapts to the respective room size and various site conditions. Additional advantages include efficient space utilization and operational reliability through redundancy. The dimensions and weight of the individual modules are tailored for easy transport. It is also possible to expand an existing system with additional modules during ongoing operations.
Benefits
- Reliable climate control for higher racks and larger heat loads
- High air throw distance for uniform cooling of large server rooms
- Redundancy through modular design
- Wall installation with horizontal airflow
- Easy access for maintenance purposes
- No raised floor required
- Maximum cooling capacity with minimal electrical power consumption
- Optimized airflow through CFD analyses for uniform distribution
- Base frame and panel construction optimized for indoor installation
- Space and cost-efficient transport within a standardized shipping container

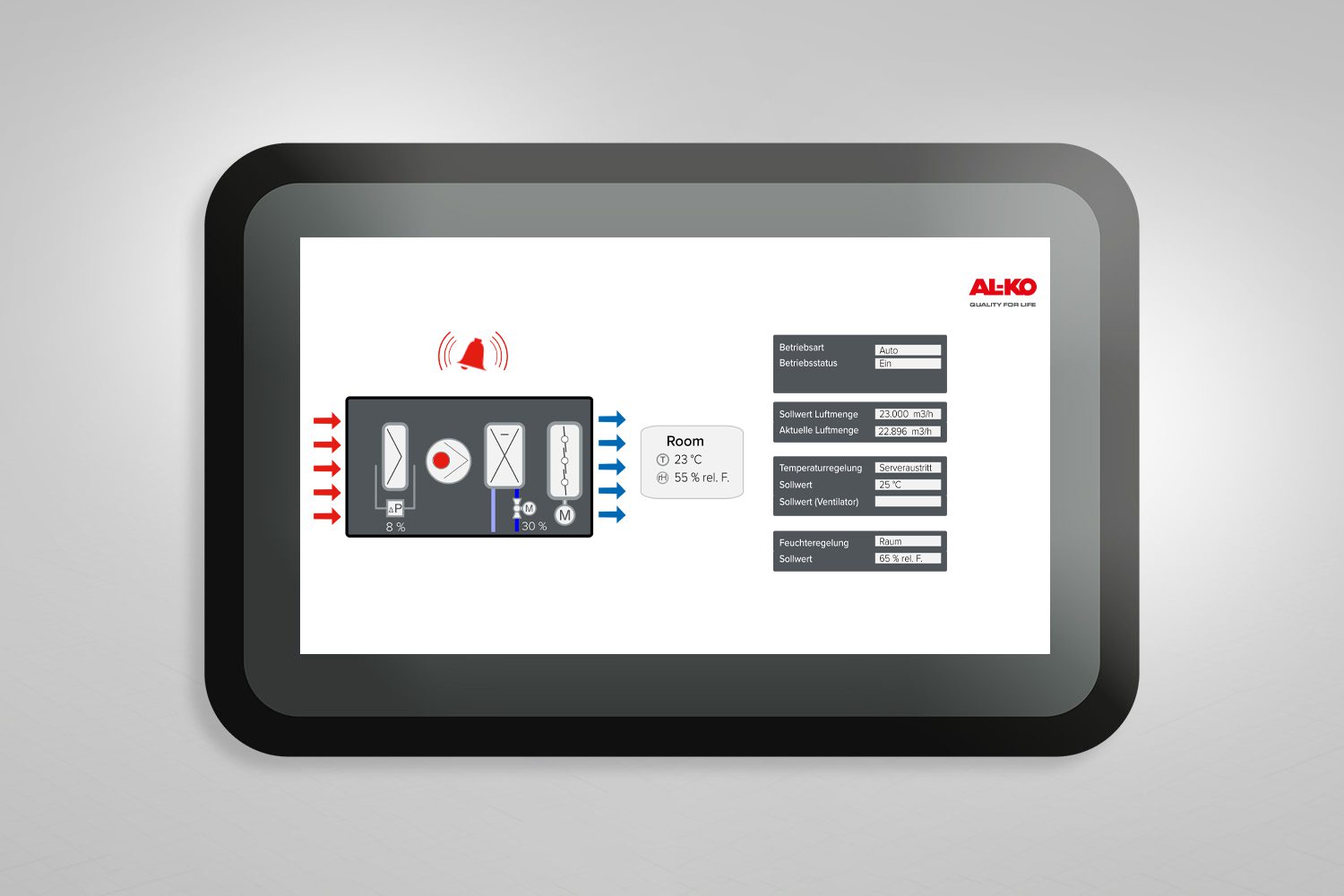

- Various control options including Delta T, differential pressure control, and room and return air
Installation
- Compact design for easier transport
- Easy handling and quick installation with Plug & Play functionality
- Multiple connectivity options
- Cube dimensions designed for container/standard transport
- Special base frame for forklift transport
Maintenance and Operation
- Maintenance-friendly design
- Easy access to relevant components
- Simple filter replacement

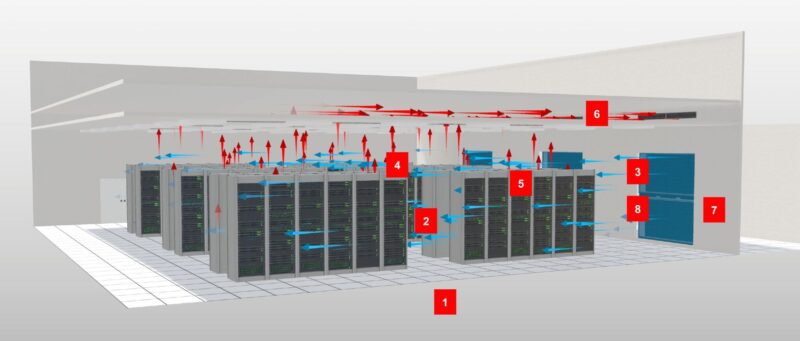

Optimal Cooling for Hyperscale Data Centers: Fan Wall-Unit AL-KO DATA AIR FAN WALL
Quality Components and Functional Units
We offer our own products as well as components and functional units from various manufacturers. All components and functional units are tested by AL-KO Airtech.

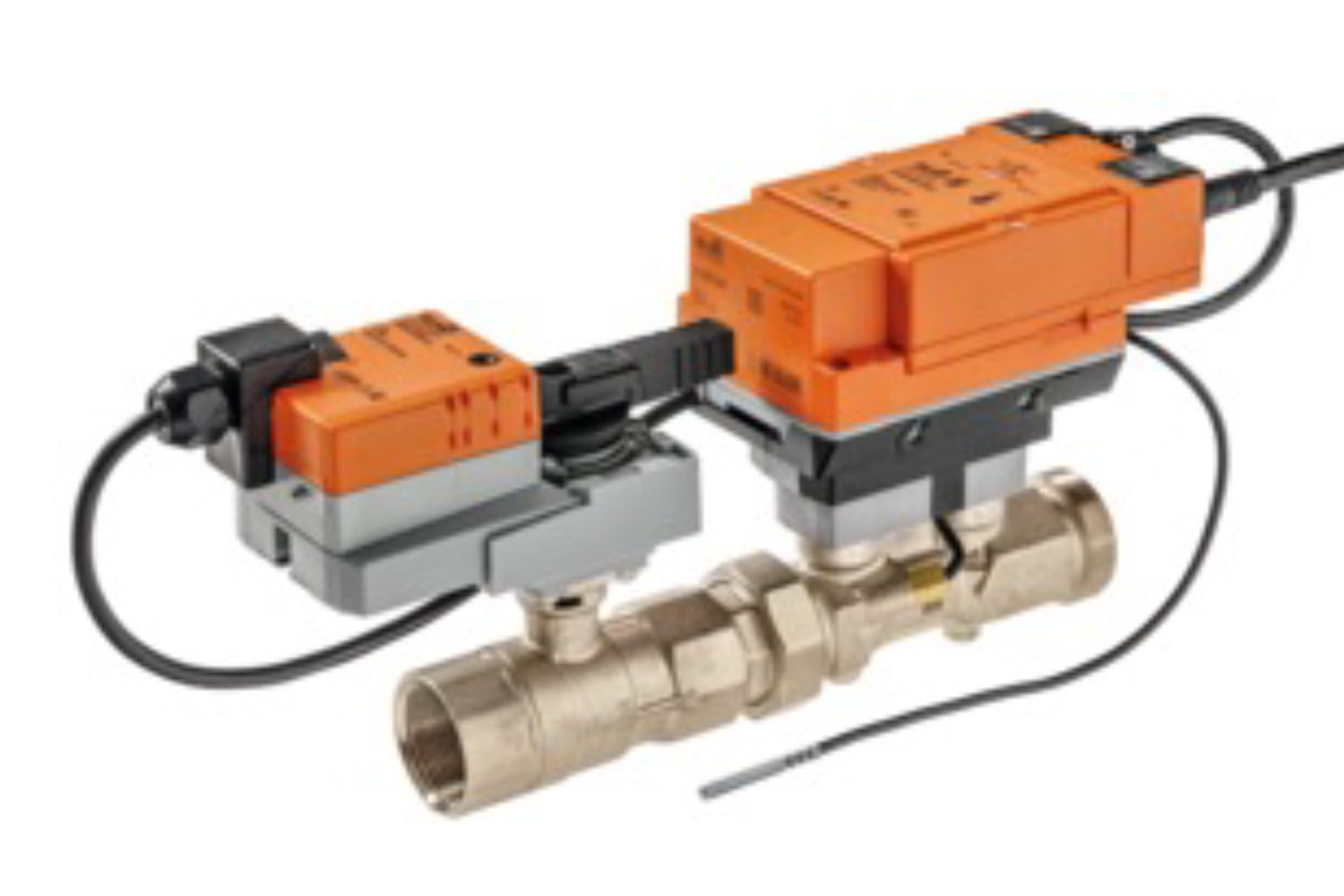

Controllers

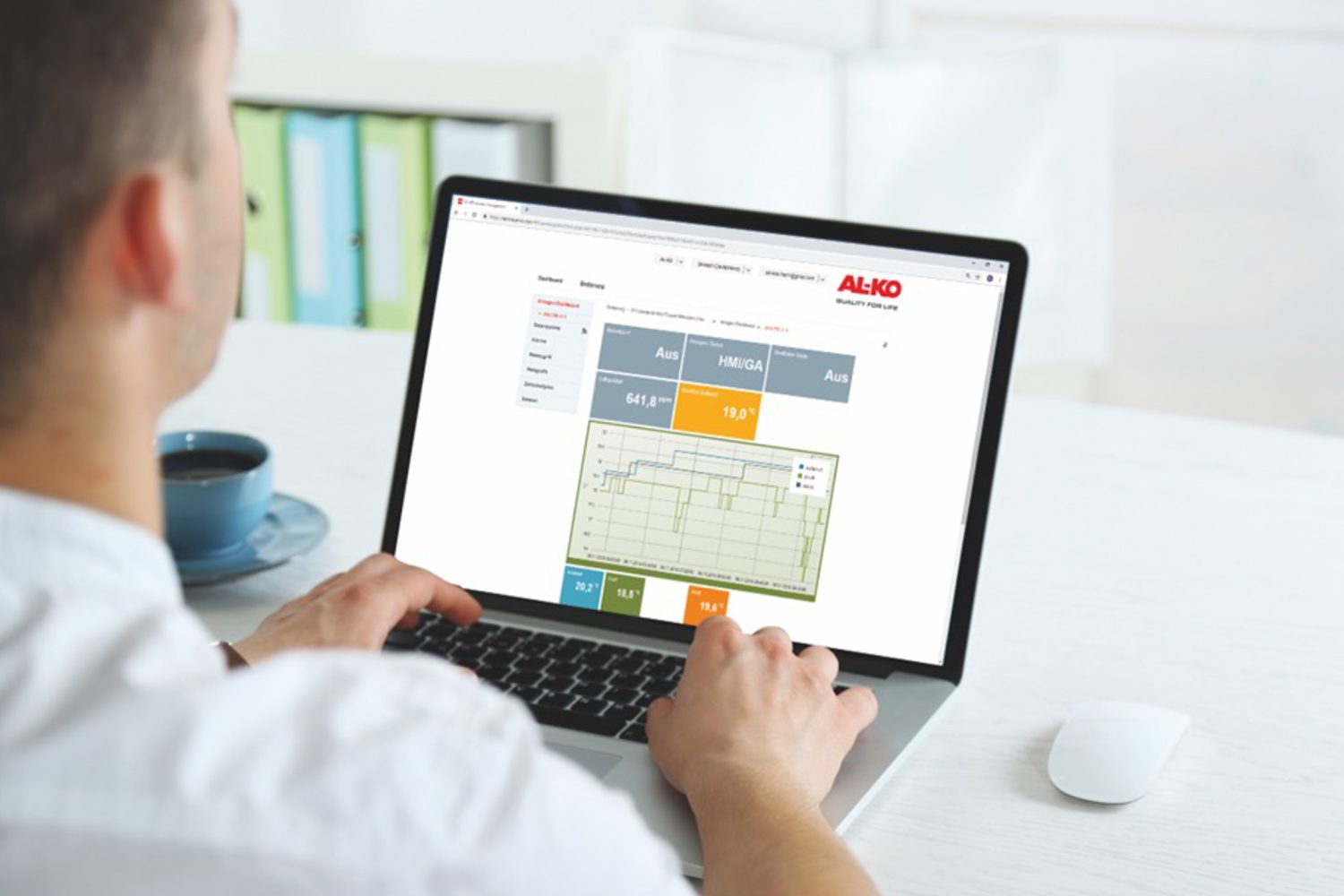

Control System

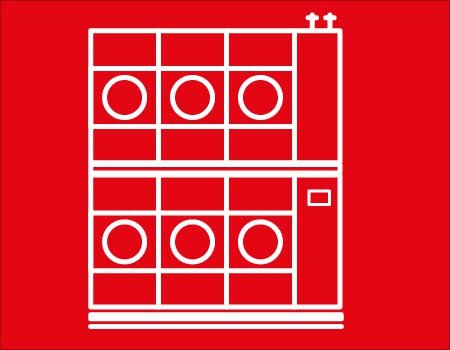

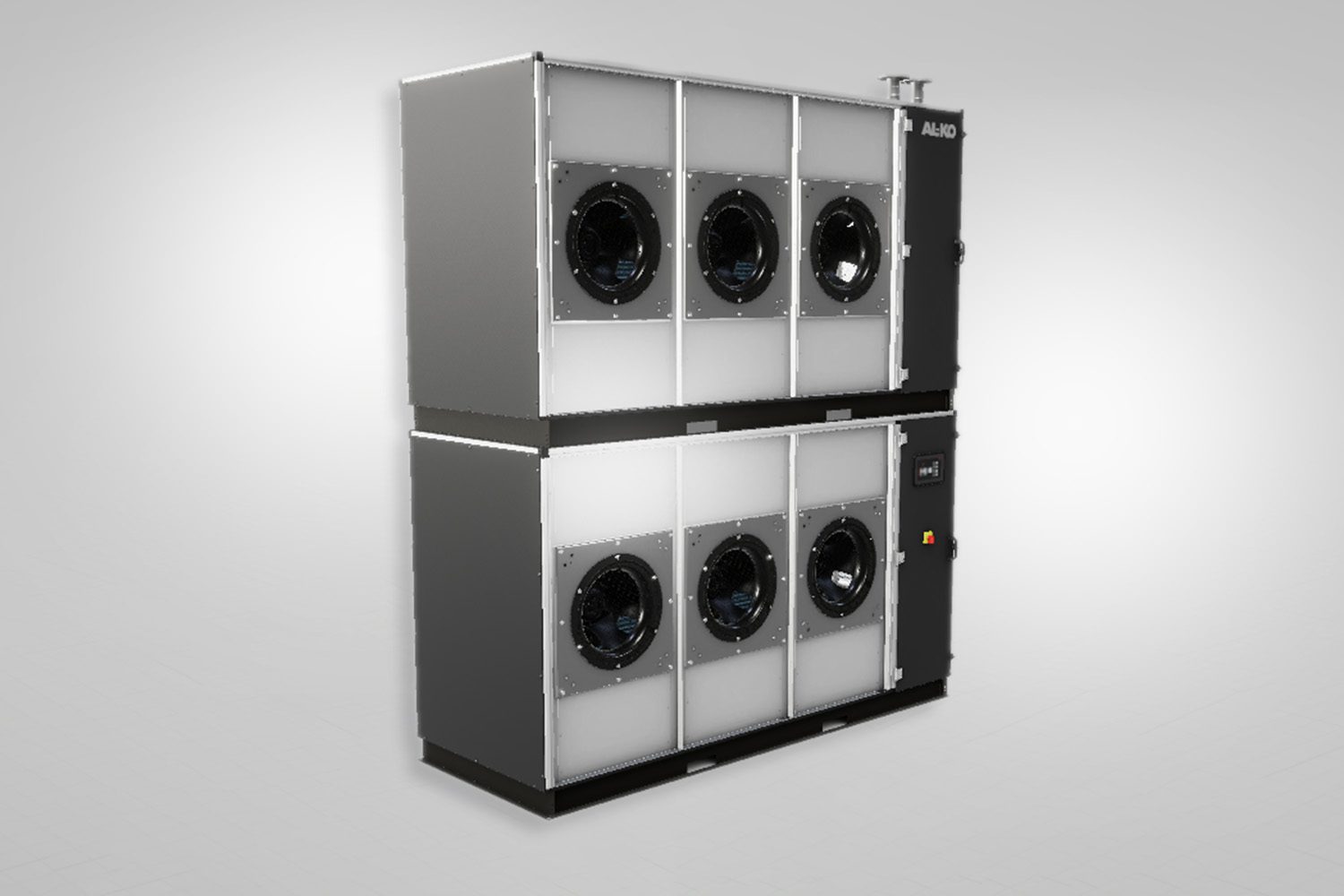

Enclosure

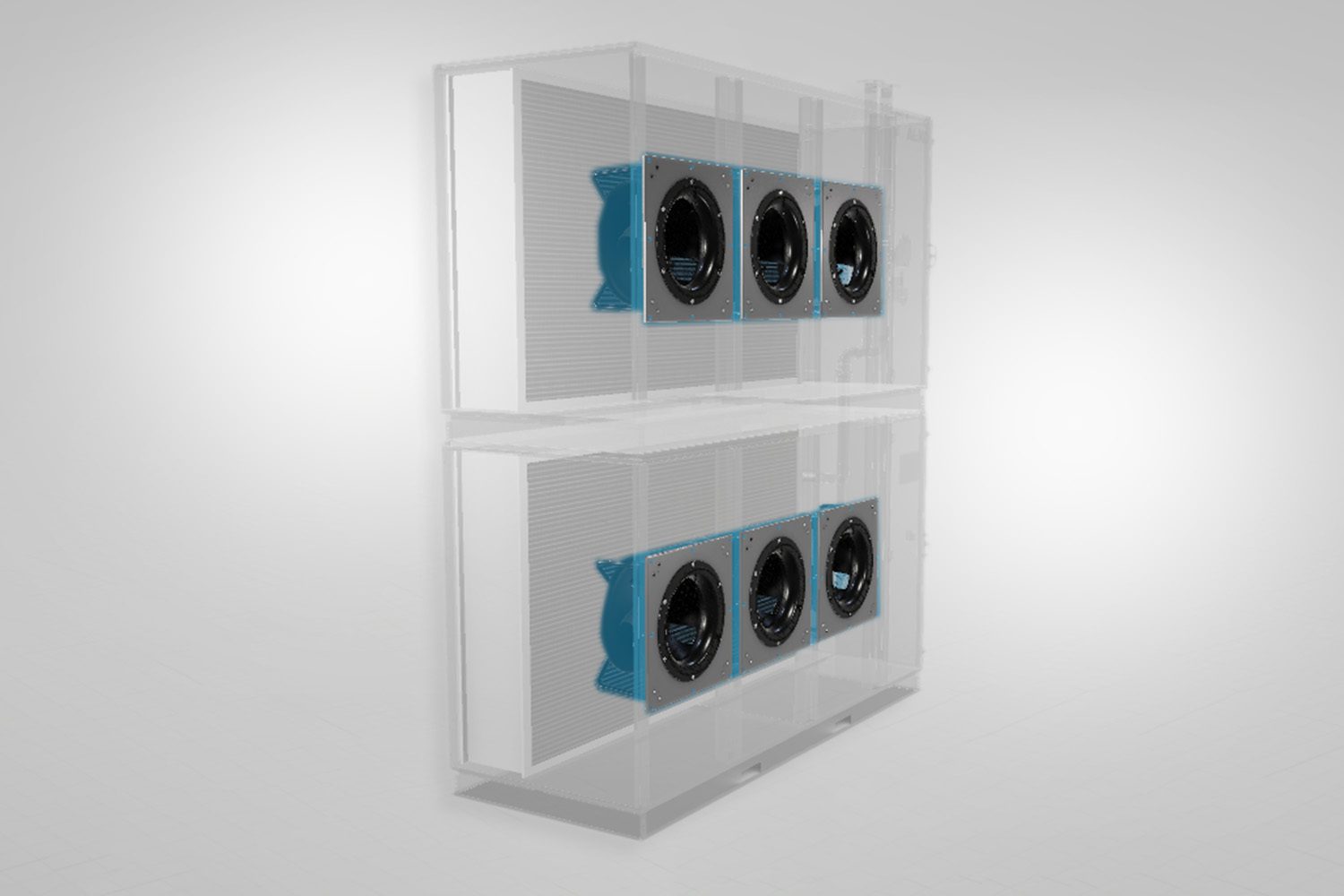

Fan

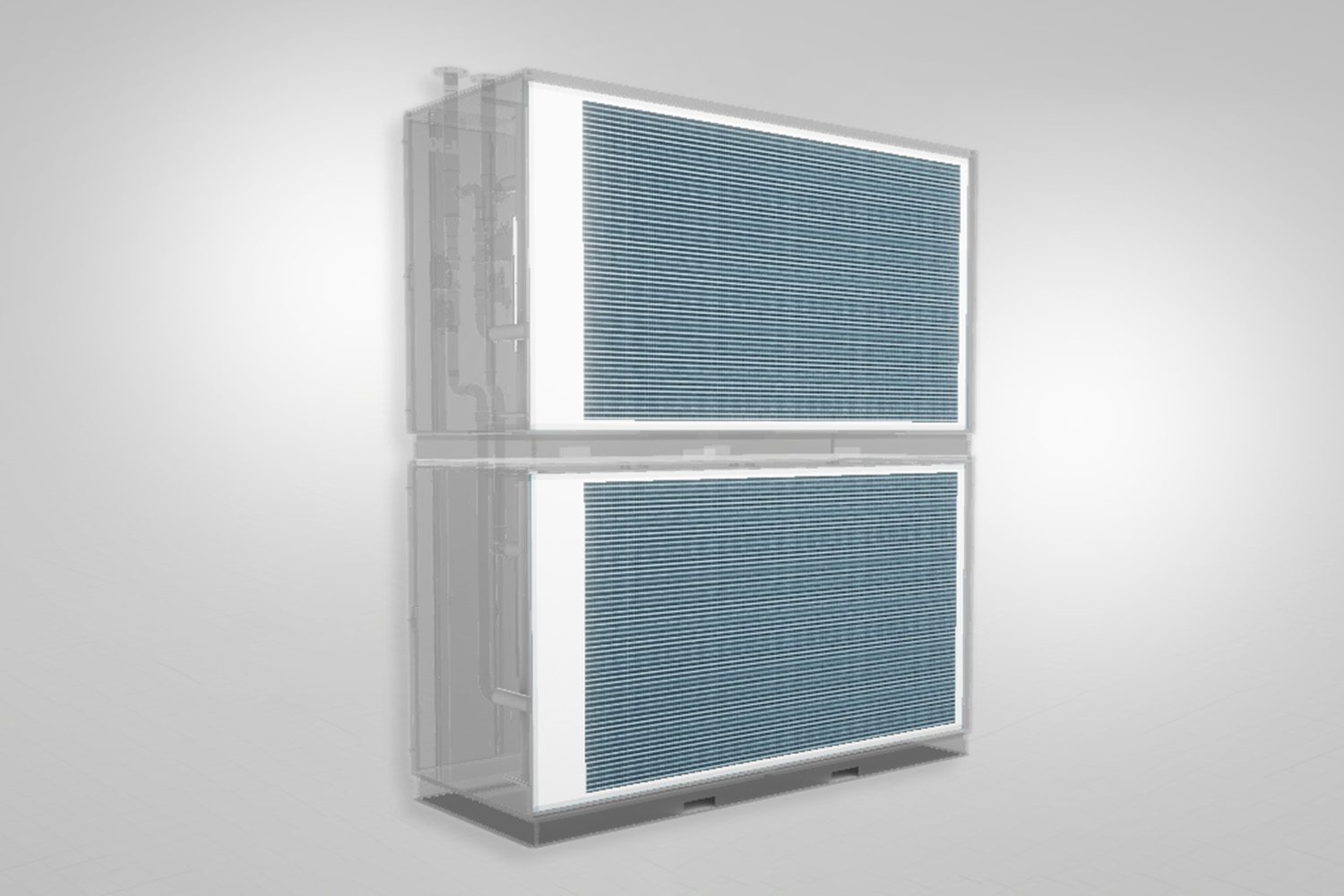

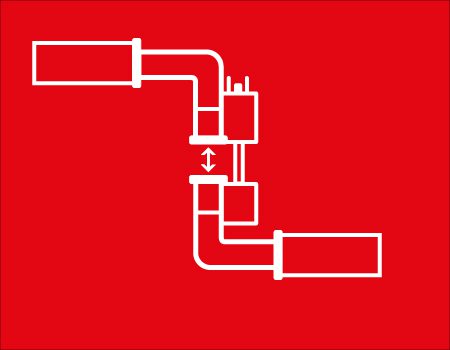

Heat Exchanger
Technical Data
Without housing division in height
| Width in mm | Height in mm | Fan size | Fan Power in kW | Number of Fans | Cooling Capacity in kW | Airflow Volume in m³/h |
|---|---|---|---|---|---|---|
| 1,530.0 | 1,224.0 | 560 | 4.4 | 1 | ≈ 50-80 | 15,300 |
| 2,448.0 | 1,224.0 | 560 | 4.4 | 2 | ≈ 100-150 | 30,600 |
| 1,530.0 | 1,530.0 | 560 | 4.4 | 2 | ≈ 100-150 | 30,600 |
| 3,442.5 | 1,224.0 | 560 | 4.4 | 3 | ≈ 160-220 | 46,000 |
| 1,530.0 | 2,448.0 | 560 | 4.4 | 3 | ≈ 160-220 | 46,000 |
| 2,448.0 | 1,530.0 | 560 | 4.4 | 4 | ≈ 230-300 | 61,200 |
| 3,442.5 | 1,530.0 | 560 | 4.4 | 6 | ≈ 300-420 | 92,000 |
| 2,448.0 | 2,448.0 | 560 | 4.4 | 6 | ≈ 300-420 | 92,000 |
| 3,442.5 | 2,448.0 | 560 | 4.4 | 9 | ≈ 450-600 | 138,000 |
Housing divided in height
| Width in mm | Height in mm | Fan size | Fan Power in kW | Number of Fans | Cooling Capacity in kW | Airflow Volume in m³/h |
|---|---|---|---|---|---|---|
| 2,448.0 | 2x 1,224.0 | 560 | 4.4 | 4 (2 x 2) | ≈ 230-300 | 61,200 |
| 1,530.0 | 2x 1,530.0 | 560 | 4.4 | 4 (2 x 2) | ≈ 230-300 | 61,200 |
| 3,442.5 | 2x 1,224.0 | 560 | 4.4 | 6 (2 x 3) | ≈ 300-420 | 92,000 |
| 2,448.0 | 2x 1,530.0 | 560 | 4.4 | 8 (2 x 4) | ≈ 450-600 | 122,400 |
| 3,442.5 | 2x 1,530.0 | 560 | 4.4 | 12 (2 x 6) | ≈ 600-805 | 184,000 |
