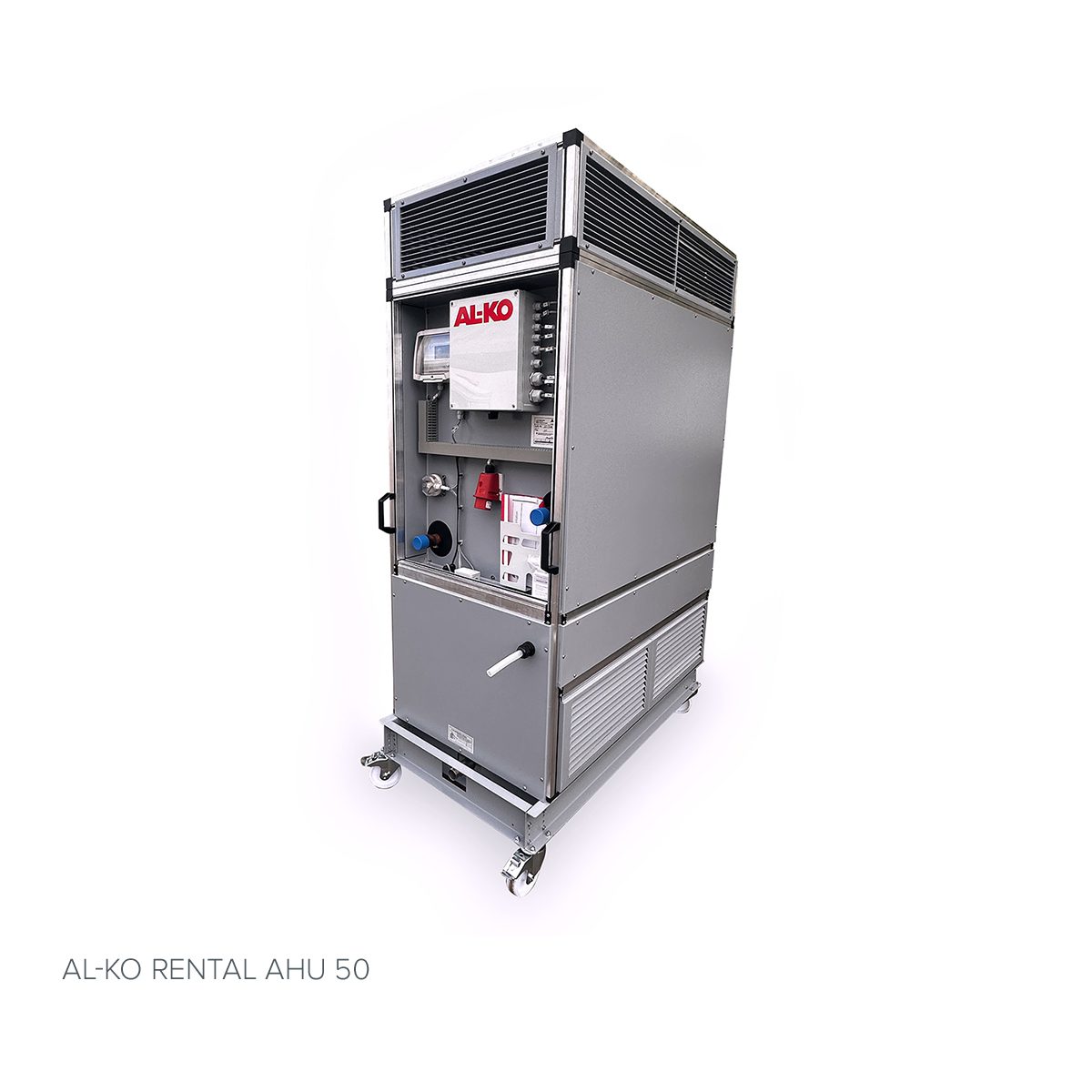

AL-KO Rental AHU – HVAC systems as plug-and-play solution
State-of-the-art air conditioning and ventilation technology, delivered and ready for operation in the shortest possible time – also as a rental unit from our strong partners. The AL-KO Rental AHU product series is based on the proven modular AL-KO AT4 series. It is available in four versions with air flow rates from 5,000 to 44,000 m3/h.
Receive consultation in person
Description
The modular AL-KO AT4 series is an all-rounder and basis for ventilation and air conditioning units for a wide range of applications – from offices to industry and data centers to hospitals. The AL-KO Rental AHU product series is developed on the basis of these air handling units, which have been tried and tested for decades. It is available in four versions with air flow rates from 5,000 to 44,000 m³/h, cooling capacities from 42 to 333 kW and heating capacities from 100 to 667 kW. The AL-KO Rental AHU Efficiency features highly efficient heat recovery by means of a closed-circuit system for optimum hygric separation of the supply and exhaust air. AL-KO Rental AHUs are also available as rental units from our strong partners Trane, ICS and MTA.
Benefits
- Plug-and-play control with simplified user interface
- Connection via CE plug, main switch and emergency stop available
- Various filters possible, depending on the application (supply air or extract air)
- Highly efficient EC fans for low power consumption
- Change-over register for heating and/or cooling depending on the on-site connection
Installation
- Easy transport, quick installation and commissioning
- Quick and flexible installation thanks to air vents
- Connection only to heat exchanger necessary, internal pipework incl. integrated valve already installed
Maintenance and operation
- Possible device design according to VDI 6022
- Hygienic and easy to clean with completely smooth inner surfaces
- Cleanly finished, hygienically perfect stainless steel floor trays
- Maximum corrosion protection thanks to galvanised and additionally powder-coated housing panels, optionally in stainless steel
AL-KO Rental AHU - the variants at a glance
The individual versions of the AL-KO Rental AHU product series impress with their optimally customised configuration and high-quality design in the typical AL-KO quality.
Technical data
AL-KO Rental AHU
| Version | Airflow rate in m3/h | Cooling capacity in KW | Heating capacity in KW | Connection |
|---|---|---|---|---|

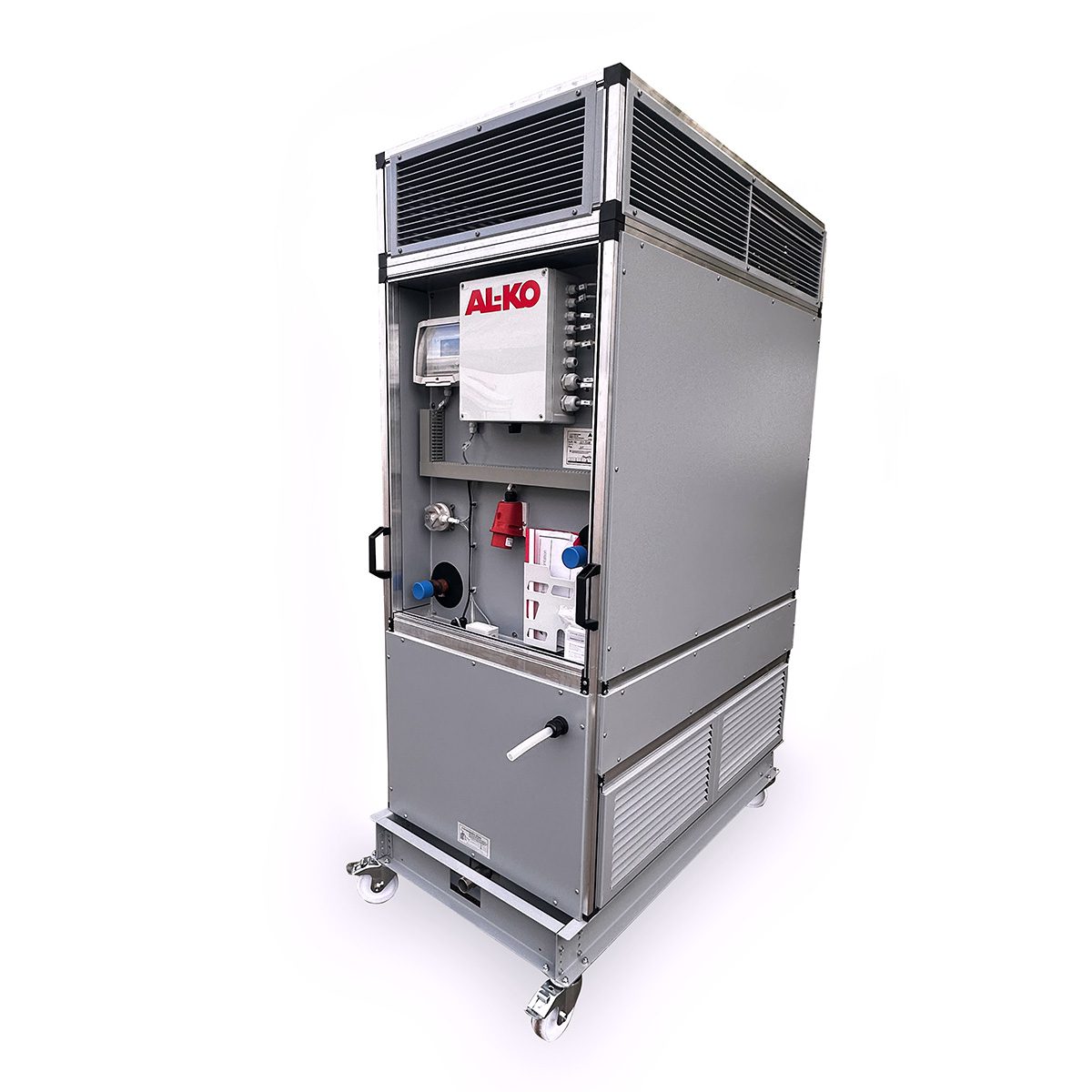

| 50 | 5,000 | 50 | 100 | DN32 |

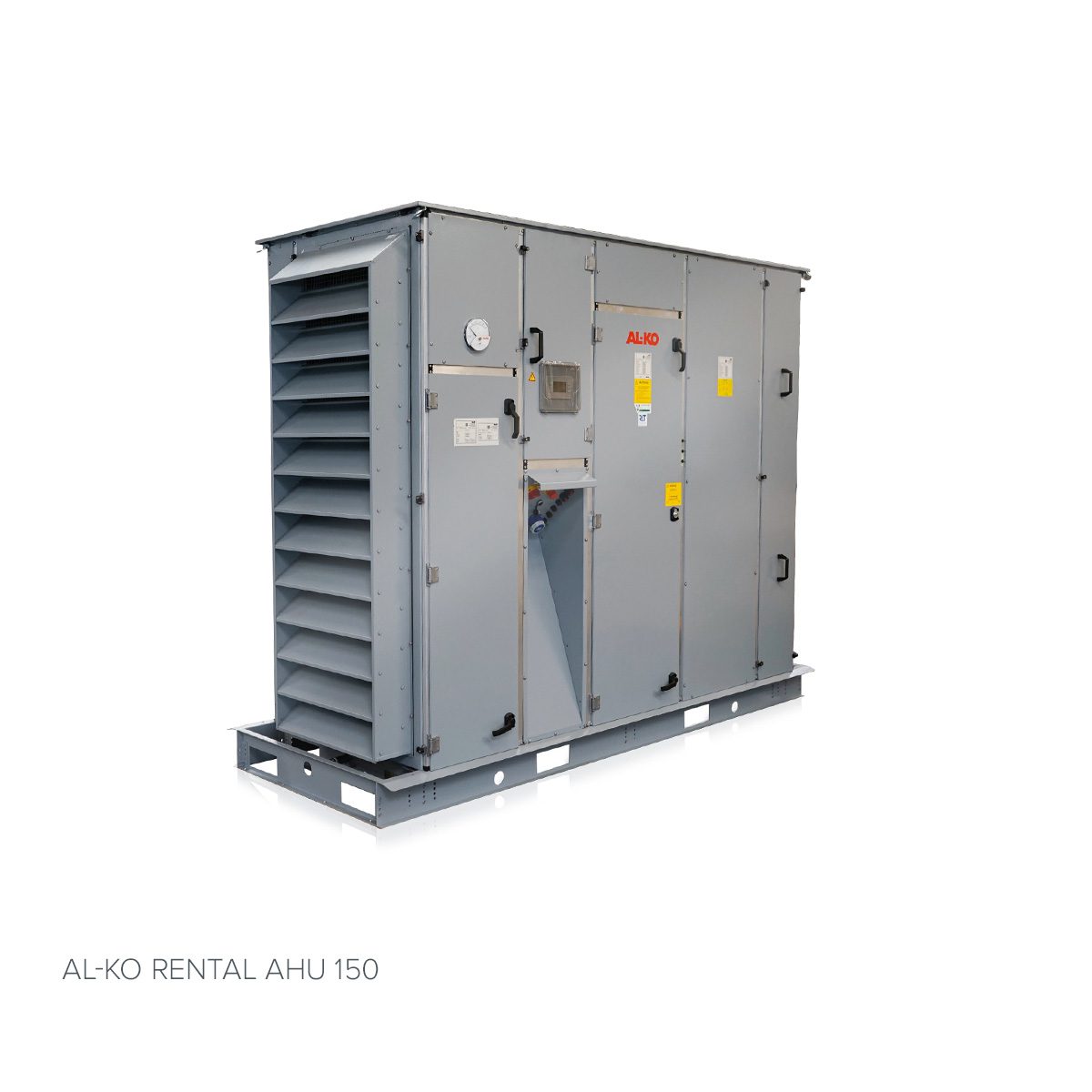

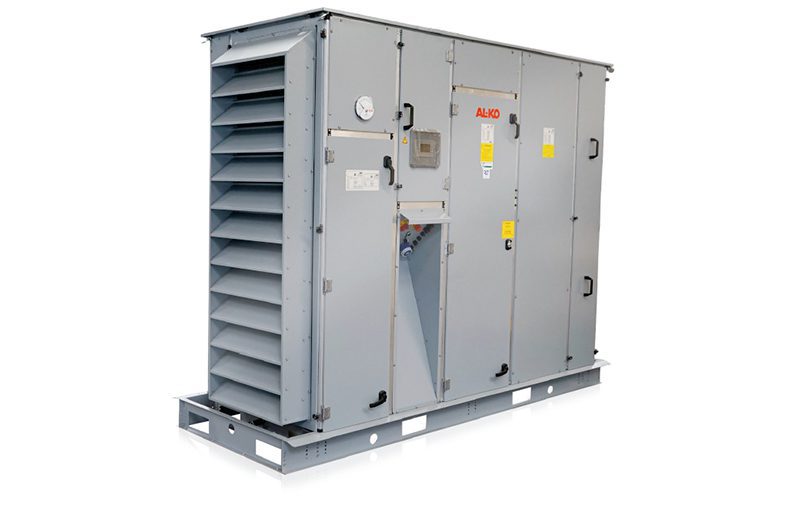

| 150 | 20,000 | 148.8 | 296.6 | DN50 |

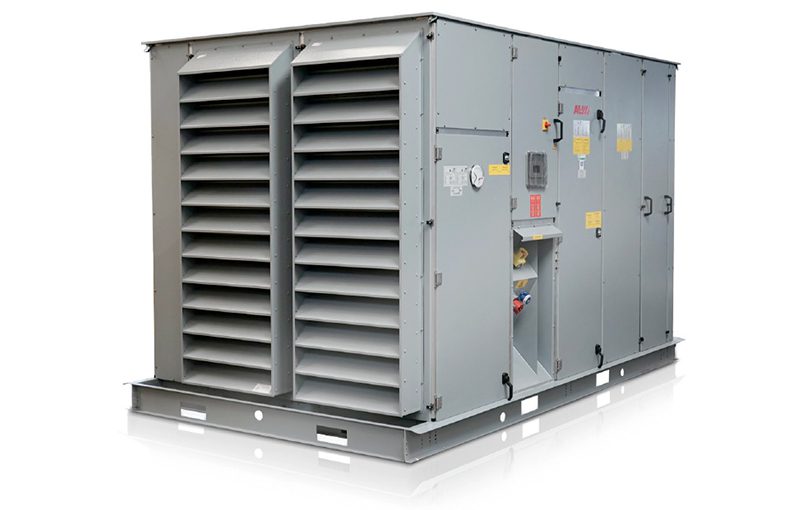

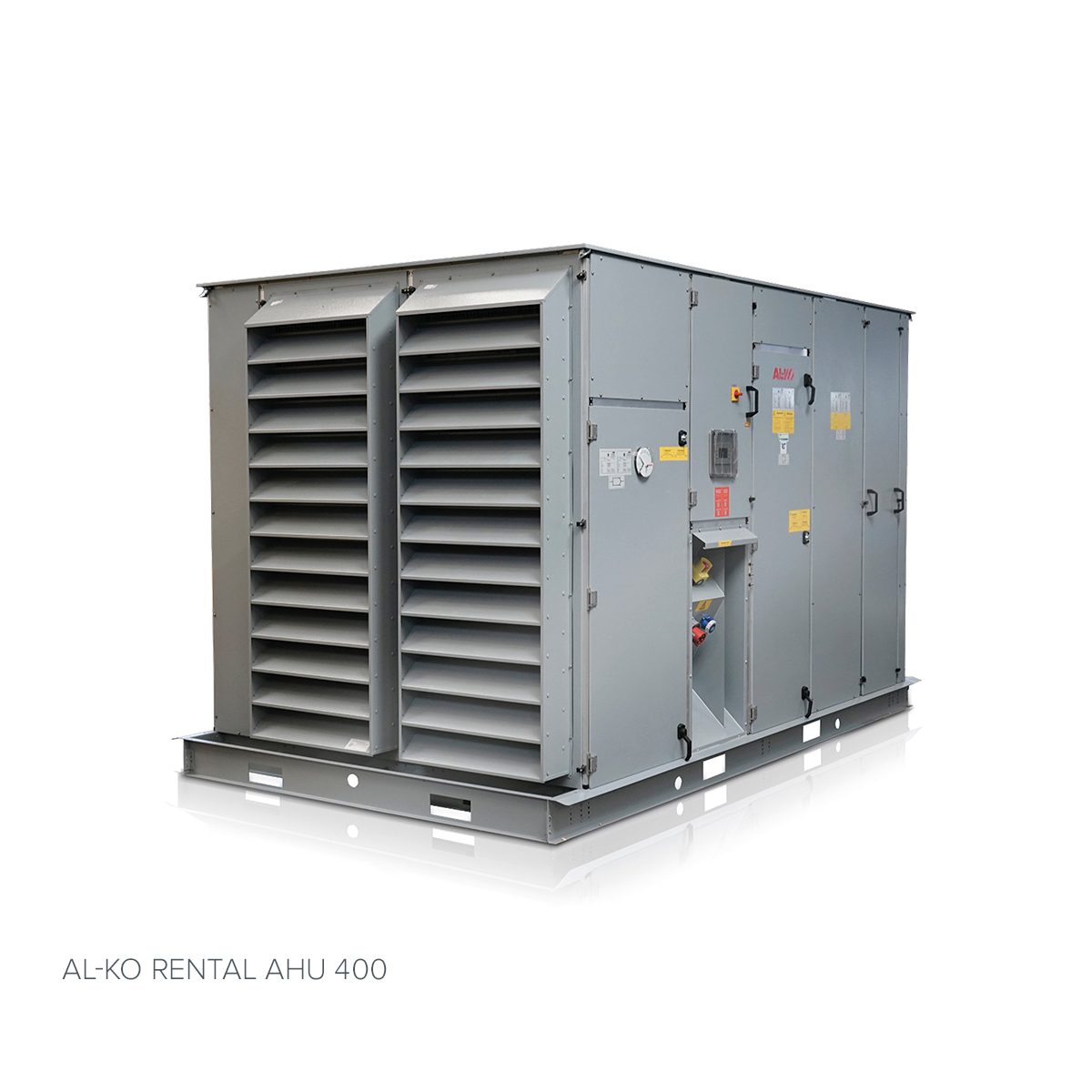

| 400 | 44,000 | 333 | 667.3 | DN100 |
| Efficiency | 10,000 – 20,000 | 41.6 | 140 | – |
Downloads
Certificates
AL-KO Airtech offers monitored quality. All products are certified according to recognized standards. The certificates can be found here:
